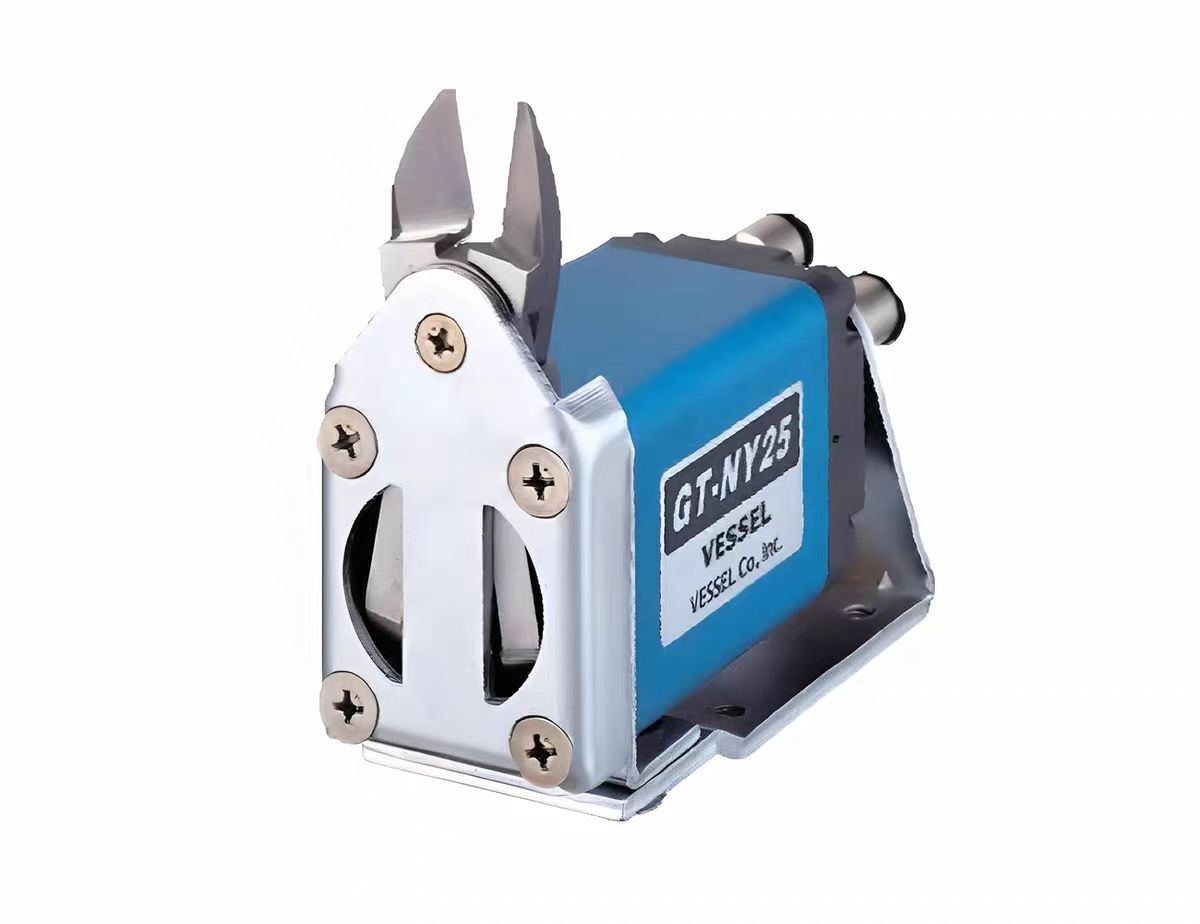

Sliding PneumaticScissorsNYSeries-Positive Type
The pneumatic scissors are an efficient and precise processing tool for the flow orifices in industrial automation, especially in the field of injection molding. It is usually a key component of the end effector (EOAT, End Of Arm Tooling) of the mechanical arm and is used to automatically trim the gates (or called runners) of plastic products.
Product Details

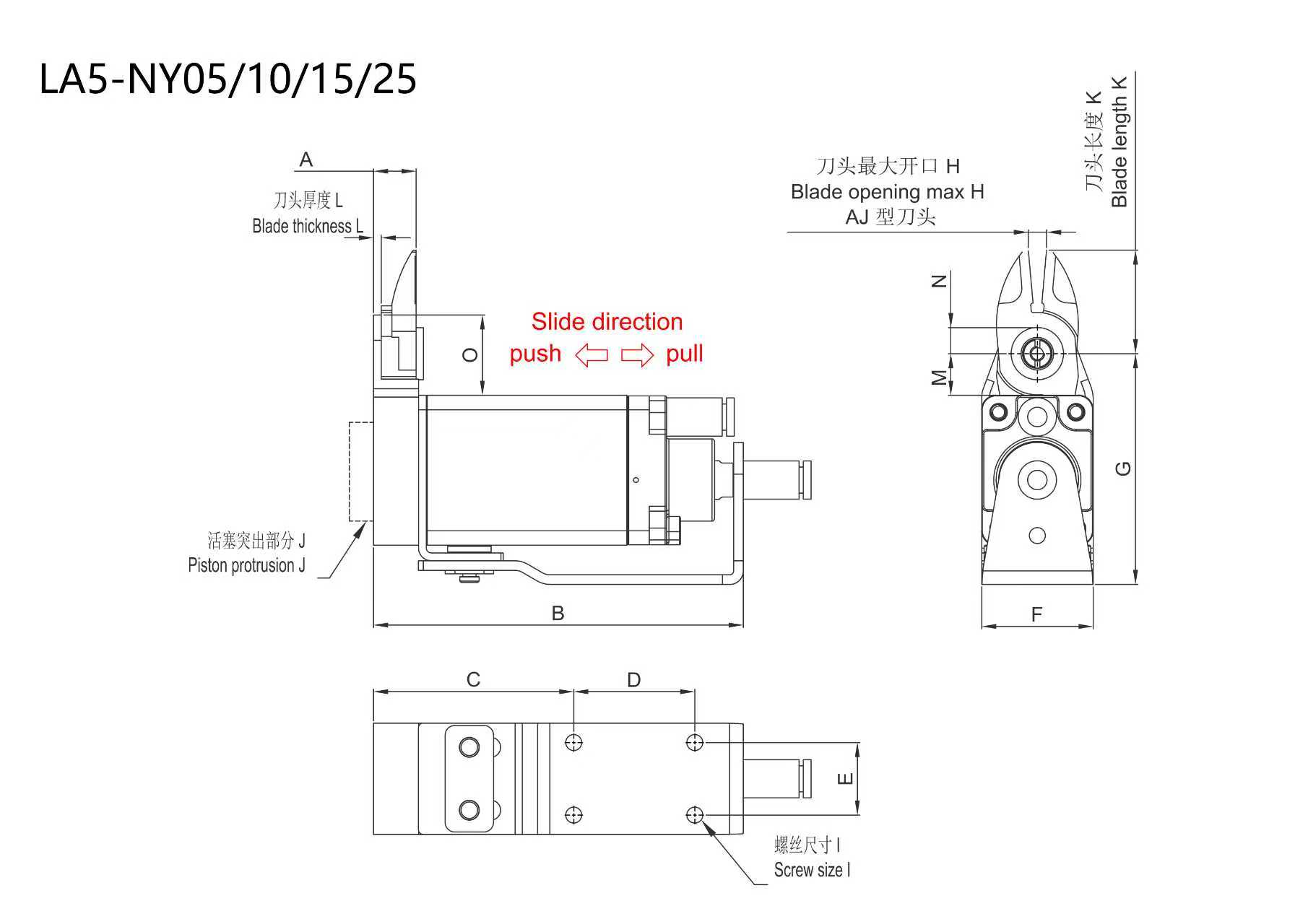

| Model NO. | Size(mm) | AIr Consumptlon (cm3/str.) | Weight(g) | Slide Direction/DIstance (mm) | Hose coupling | Capacity 0(mm) | |||||||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | Soft Plastic | Hard Plastic | Copper | Steel | |||||
|
0
|
8.6 | 75.9 | 40.9 | 25 | 15 | 23 | 47.6 | 4 | M4 | 3 | 22 | 1.6 | 8.5 | 6.25 | 16.5 | 48 | 155 | Pull 0~3 | W/hose nippleHose I.D.Ø2.5mm | 3 | 2 | 1 | 0.8 |
|
0
|
8.8 | 82.1 | 42.1 | 30 | 20 | 28 | 51.6 | 6 | M4 | 5 | 24 | 1.6 | 7.5 | 6.25 | 15.5 | 68 | 210 | Pull 0~3 | W/hose nippleHose I.D.Ø2.5mm | 3.5 | 2.3 | 1.6 | 1 |
|
0
|
10.2 | 93 | 48 | 35 | 25 | 33 | 58 | 8 | M4 | 5 | 27 | 2 | 7.5 | 6.25 | 16.5 | 136 | 319 | Pull 0~3 | W/hose nippleHose I.D.Ø2.5mm | 4 | 2.6 | 1.6 | 1 |
|
0
|
12.5 | 108.5 | 54.5 | 40 | 30 | 42 | 69 | 9 | M5 | 2 | 31 | 2.5 | 10.5 | 7 | 20.5 | 184 | 580 | Pull 0~3 | W/hose nippleHose I.D.Ø2.5mm | 5 | 3.4 | 2.4 | 1.5 |
